ATLAS 10KOHX 10,000 LB OVERHEAD 2-POST LIFT
4 in stock
4 in stock
3 in stock
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Delivery
Our delivery timeframe is usually between 14 to 21 days, depending on your location and order processing. Once your order is shipped, you’ll receive a tracking number to monitor its progress. Please allow for some variation in delivery times due to factors such as location or unexpected delays.
Shipping & Returns
Yes, refunds are available under certain conditions. If your item meets the criteria in our refund policy, you can initiate a return. After we receive and inspect the returned item, we’ll process your refund. For further details, please review our full refund policy or contact us for assistance.
Package tracking allows you to monitor the status and location of your order as it is shipped to you. Once your order is dispatched, you’ll receive a tracking number that you can use on the courier’s website to see updates on your package’s journey, including its estimated delivery date.
Payment
We accept a variety of payment methods to make your shopping experience as convenient as possible. You can pay using major credit and debit cards, PayPal, and other secure online payment options. For eligible purchases, we also offer financing options through PayPal, allowing you to pay in installments.
Once an order is placed, we begin processing it quickly to ensure timely delivery. If you need to change or cancel your order, please contact us as soon as possible. We’ll do our best to accommodate any changes before the order is shipped. However, once the order has been dispatched, we may not be able to make adjustments.
You can change or cancel your order as long as it hasn’t been processed or shipped. Please contact us immediately if you need to make any changes, and we will do our best to accommodate your request. Once the order is dispatched, cancellations or modifications may no longer be possible.

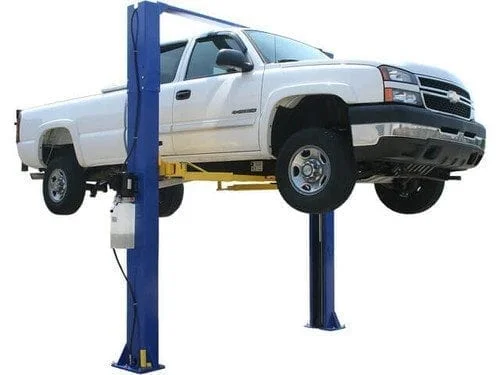

The light duty Atlas® 10KOHX lift is an economy designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for “Mr. Homeowner” or small commercial shops looking to service cars, SUV’s and light duty trucks. The 10KOHX can be adjusted to two different height settings, either 11′ 6″ or 11′ 10″, allowing it to fit in almost any standard garage.
The Atlas® 10KOH has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The Atlas® 10KOHX two post “chain over roller” lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.
The 10KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price.
10,000 lb. Capacity
Overhead, Open-Floor design
Overall Height: 138″ (11′ 6″) or 142″ (11′ 10″)
Asymmetric/Symmetric Arms
Automatic Arm Restraints
Dual-Point Lock Release
Rubber Guards on Carriages
Dual Hydraulic Chain-Drive Cylinders
Secondary Lock System
Free 8 Piece Truck Adapter Set
Free set of Sliding Arm Adapters
Mounting Hardware Included
Shipping Weight: 1,450 lbs.
2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
Atlas® 9KOHX Specifications
Capacity
9,000 LB.
Overall Height
138″ (11’ 6″) or 142” (11’ 10”)
Overall Floor Width
134 1/2″ (11’ 2 1/2″)
Outside Column to Outside Column
124 7/8″ (10’ 4 7/8″)
Maximum Lift Height (Without Adapters)
74 1/2″
Maximum Lift Height (With Adapters)
81″
Minimum Arm Height
4″
Inside Column
110” (9’ 2”)
Drive Thru
100” (8’ 4”) Symmetric/ 90 1/2″ (7’ 6 1/2”) Asymmetric
Column Size
7 1/4″ x 11″
Column Thickness of Steel
5mm
Base Of Lift
14 1/4″ x 18″
Motor/Electrical Requirement
220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight
1,450 LBS.
Adapter Heights
4 Each 1.5”, 5”
Arm Hole/Adapter Peg Size
1.5”
Requires a minimum of 4″ of concrete with a 3000 psi. rating
